Power Generation OHE High Voltage Presence absence Indication System Asian OHE IS 001

Send Inquiry

Request To Call Back

Power Generation OHE High Voltage Presence absence Indication System Asian OHE IS 001

Name: Power Generation OHE High Voltage Presence absence Indication System Asian OHE IS 001
Brand: ASIAN CONTROLS & EQUIPMENTS
Price: 110000.0 INR
Availability: InStock

Price 110000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Power Generation OHE High Voltage Presence absence Indication System Asian OHE IS 001 Specification

Display Type
LED Indication / Visual and Audible Alarm

Product Type
OHE High Voltage Presence & Absence Indication System

Output Power
Not Applicable / Signal Level

Output Frequency
50 Hz / 60 Hz (system dependent)

Input Voltage
230V AC / 110V AC (as specified)

IP Rating
IP54 or above

Output Voltage
Signal Output (Voltage free contact or relay output)

Output Current
Signal Level, typically <1A (Relay)

Capacity
For Monitoring OHE High Voltage lines

Application
Railway OHE (Overhead Equipment) High Voltage Line Presence/Absence Indication

Efficiency
High reliability for safety indication

Shape
Rectangular

Size
Custom/As per panel mounting requirement

Weight
Approx. 2-5 kg

Mounting Type
Wall/Panel Mounting

Indication Distance
Visible up to 20 meters

Operating Temperature Range
-10C to +55C

Alarm Type
Audio-Visual Indication

Body Material
Powder coated steel / ABS enclosure

Response Time
<1 second

Ingress Protection
Dust & Water Resistant (IP54/IP55)

Power Consumption
Less than 15 VA

Model Number
Asian OHE IS 001

Color
Beige with Red Marking

System Compatibility
Suitable for Indian Railways and Industrial OHE systems

Conforming Standards
RDSO and Railway Safety Standards

Power Generation OHE High Voltage Presence absence Indication System Asian OHE IS 001 Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID), Cash Advance (CA)

Supply Ability
1 Piece Per Week

Delivery Time
1 Week

Power Generation OHE High Voltage Presence absence Indication System Asian OHE IS 001 About

Stay Safe and Efficient with Our NonContact Voltage Detector OHE Working in electrical environments just got safer and easier Introducing our NonContact Voltage Detector OHE designed with cuttingedge nonmetallic contact technology This tool helps you detect voltage without direct contact reducing risks and enhancing workplace safety The sleek OHEstyle design with a 3stage bright LED ensures you can easily detect voltage even in dark or lowlight conditions When voltage is detected the OHEs LED lights up red and triggers an audio alert so youll never miss a reading Why Choose Our Voltage Detector OHE Dual Voltage Range Detects both low 12V and high up to 1000V voltage levels AllinOne Detection Features an electric torch and low voltage indicator to support you in any situation Portable Convenient Compact lightweight and powered by standard AAA batteries this OHE is ready when you are Designed for Safety No metallic contact needed ideal for both professionals and DIY enthusiasts Technical Specifications Voltage Range 12V to 1000V 48V to 1000V Frequency 50Hz 60Hz Alarm Mode Sound and Light Voltage Levels Low Moderate High Torch Indicator Builtin electric torch and low voltage LED indicator Power Source 2 x 15V AAA batteries Temperature Range 0C to 55C Compact Design OHEtype for portability and ease of use

Efficient High Voltage Detection

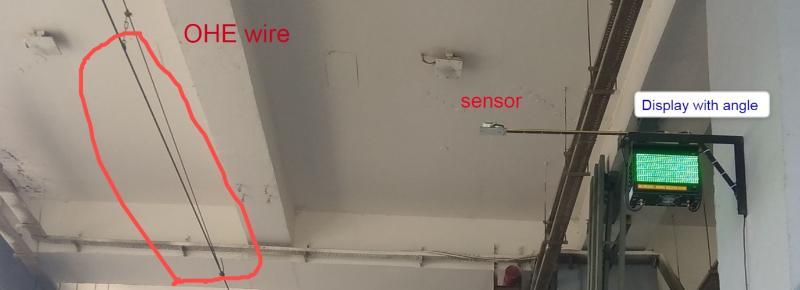

Asian OHE IS 001 ensures real-time detection of high voltage presence or absence on Overhead Equipment (OHE) lines. Whether installed in railway substations or industrial environments, its LED display and audible alarm system are designed to draw immediate attention, reducing operational risks and promoting proactive safety measures.

Rugged and Adaptable Design

Constructed with a powder coated steel or ABS enclosure and rated IP54/IP55 for dust and water resistance, this system thrives in challenging outdoor conditions. Its compact rectangular form fits seamlessly into various panel mounting requirements, ensuring long-lasting durability even with frequent field use.

Compliance and User Confidence

Meeting RDSO and Indian Railway Safety Standards, the Asian OHE IS 001 assures users of its reliability and adaptability. With fast response times, low maintenance demands, clear visual and audible signals, it establishes itself as an essential addition to OHE monitoring infrastructure.

FAQ's of Power Generation OHE High Voltage Presence absence Indication System Asian OHE IS 001:

Q: How does the Power Generation OHE High Voltage Presence/Absence Indication System work?

A: The Asian OHE IS 001 monitors OHE (Overhead Equipment) high voltage lines, providing instant audio-visual alerts via LED indicators and sound alarms when voltage is detected or absent. Its rapid response time of under one second ensures immediate notification to enhance safety protocols.

Q: What environments is the Asian OHE IS 001 suitable for?

A: This system is designed for use in railway OHE systems and industrial environments subjected to outdoor conditions. Its dust and water resistant enclosure (IP54/IP55) and wide operating temperature range (-10C to +55C) make it suitable for harsh field installations.

Q: Where can the system be installed?

A: The indicator can be wall-mounted or panel-mounted, allowing for flexible installation within substations, locomotive sheds, control rooms, or any relevant panel in railway and industrial OHE infrastructure.

Q: What is the process for using the OHE voltage indication system?

A: After connecting the device to the appropriate input voltage (230V AC or 110V AC, as specified), the system continually monitors the voltage line status. If voltage presence or absence is detected, corresponding visual (LED) and audio signals are triggered, alerting staff to the current status.

Q: What are the primary benefits of installing this system?

A: Key benefits include immediate awareness of voltage status, enhanced operational safety, reduced risk of accidental contact, high reliability, and compliance with RDSO and railway safety standards. Its visible signals are effective up to 20 meters, making it ideal for large operational spaces.

Q: When should maintenance be performed on the Asian OHE IS 001 system?

A: Routine periodic checks should be conducted to ensure the LED indicators, audio-visual alarms, and enclosure integrity are functioning optimally, especially after instances of heavy use or exposure to adverse weather.

Q: Is the system compatible with Indian Railway safety requirements?

A: Yes, the system is manufactured in line with RDSO and Indian Railway safety standards, making it fully compliant and trusted for railway and industrial OHE monitoring applications.
