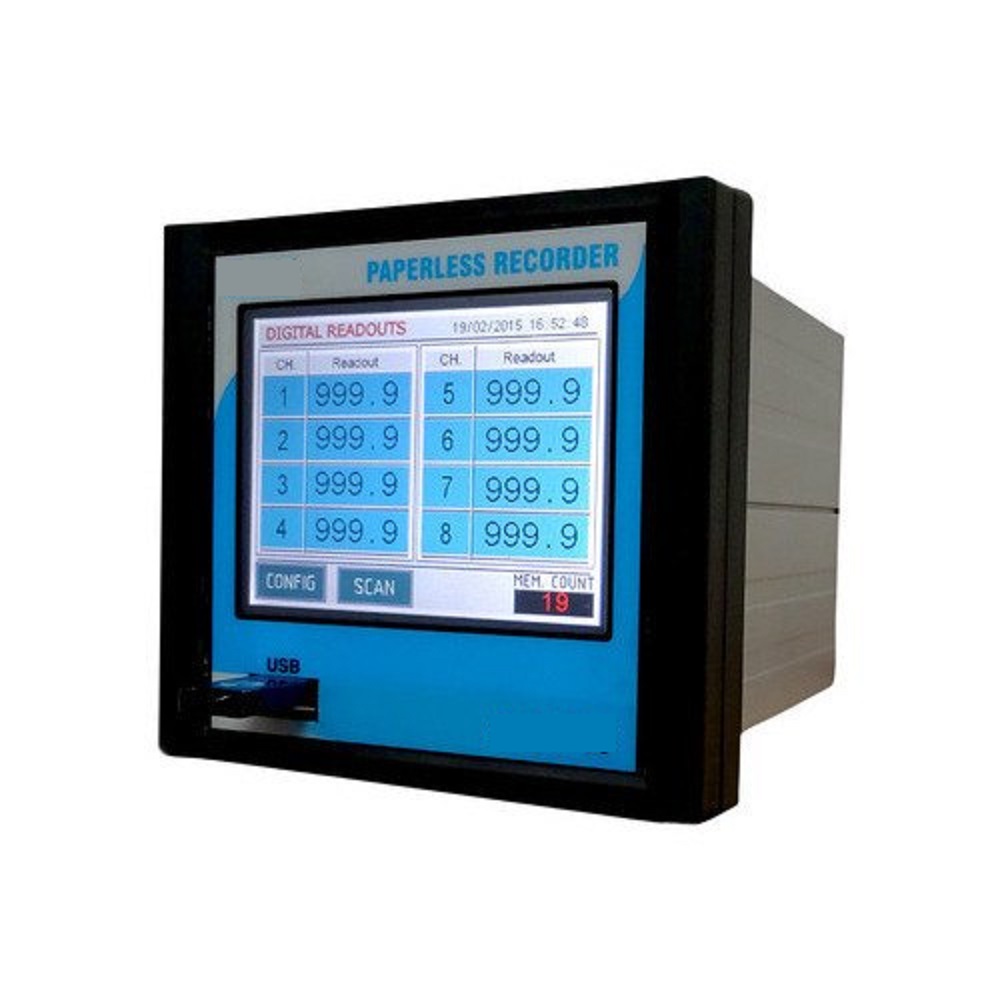

Paperless Recorder

Name: Paperless Recorder
Brand: ASIAN CONTROLS & EQUIPMENTS
Price: 78000.0 INR
Availability: InStock

Price 78000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Paperless Recorder Specification

Operating Temperature
0C to 50C

Measuring Units
Selectable (C, F, mA, V, etc.)

Language
English

Resolution
0.01

Flow Rate
Configurable via input

Protection
IP65 (Front Panel)

Measurement Range
See Range

Output
USB, Ethernet, RS-485 Modbus

Model
Paperless Recorder

Input
Up to 8 Universal Inputs (TC, RTD, mA, V)

Cut Size
138mm x 138mm

Connector
Terminal Block

Storage Temperature
-20C to 60C

Pressure Range
Configurable based on sensor

Color
Blue and Black

Stability
Long Term Drift <0.1% per year

Humidity %
0 to 85% RH (Non-Condensing)

Signal Type
Analog and Digital Input Support

Process Connection
Wiring Terminal Blocks

Connectivity Type
USB, Ethernet

Mounting
Panel Mounting

Housing Material
Powder Coated Metal

Length
220mm (Depth)

Dimension (L*W*H)
Approx. 144mm x 144mm x 220mm

Response Time
1 second

Connecting Type
Terminal Block

Sensitivity
0.01

Equipment Type
Data Recorder

Sensor Type
Thermocouple, RTD, Analog

Current Range
4-20mA, 0-20mA

Temperature Range
0C to 50C

Capacity
64MB Internal Memory

Application Media
Temperature, Pressure, Flow, and Level Monitoring

Frequency
50/60 Hz

Material
Plastic Body with Metal Housing

Power Supply
220V AC, 50/60Hz

Power Consumption
Less than 15 VA

Accuracy
0.2% of F.S.

Display Type
TFT Colour LCD Touchscreen

Range
-9999 to 9999 (Configurable)

Data Storage
Internal memory with USB download

Number of Input Channels
Up to 8

Display Size
Approx. 5.7 inches

Date/Time Stamp
Available

Recording Interval
Programmable (1s to 30min)

Data Export Format
CSV, EXCEL compatible

Firmware Upgradable
Yes, via USB

Real-Time Clock
Built-in with Battery Backup

Calibration
User Programmable

Graphical Representation
Trend & Bar Graphs

Data Retrieval
Direct Download via USB/Ethernet

Screen Type
Touchscreen LCD

Alarm
Multiple Relays for Alarm Outputs

Paperless Recorder Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
1 Piece Per Week

Delivery Time
1 Week

Sample Available
No

Main Domestic Market
All India

Paperless Recorder About

We are one of the coveted suppliers and manufacturers of Paperless Recorder. These Paperless Recorders are offered in various technical specifications in order to maximize the satisfaction level of our esteemed customers. Moreover, our expert engineers use cutting edge technology and superior quality raw material in order to fabricate this range as per set international and industrial standard. Our customers highly demand this range for having features like reliability, outstanding performance, longer service life, simplicity of use and easy installation.

These recorders are designed and fabricated as per latest design and technology. Moreover, these products are widely appreciated for having features like outstanding performance, user friendliness and low maintenance.

Features:

Electronic recording replaces strip chart recorder, save on consumables

Compact size metallic enclosure with chart recorder, saves on consumables

Remote data transmission via RS232 / RS 485

A parallel port is provided to interface any dot matrix printer

Up to 32 universal inputs record all measuring signals

Multicolor 8 inch TFT display with 640x480 resolution provides a digital & graphical curve display for each channel

Stored reliably the data of each channel at predefined time with internal flash memory retains the same even in event of power failure!

A PC software package provided to interface with any PC

Direct access to stored data in MS Excel format on PC

Technical specifications:

Inputs : 32 universal analogue inputs (RTD,TC,0-10Vdc,4-20mA)

Outputs : 24 relays optional card

Memory : Internal flash

Communication : RS232/485 serial ports, Ethernet port (optional) & Centronic parallel printer port

Power supply : 24 VDC, 2 Amps.

Dimensions : 270 mm(w) x 178 mm(H) x 100 mm Depth max

Flexible Data Monitoring with Universal Inputs

Accommodating up to eight input channels, the Paperless Recorder accepts signals from thermocouples, RTDs, analog, and digital sources. This flexibility allows users to monitor temperature, pressure, flow, and level seamlessly within a single platform, making it suitable for various industrial scenarios.

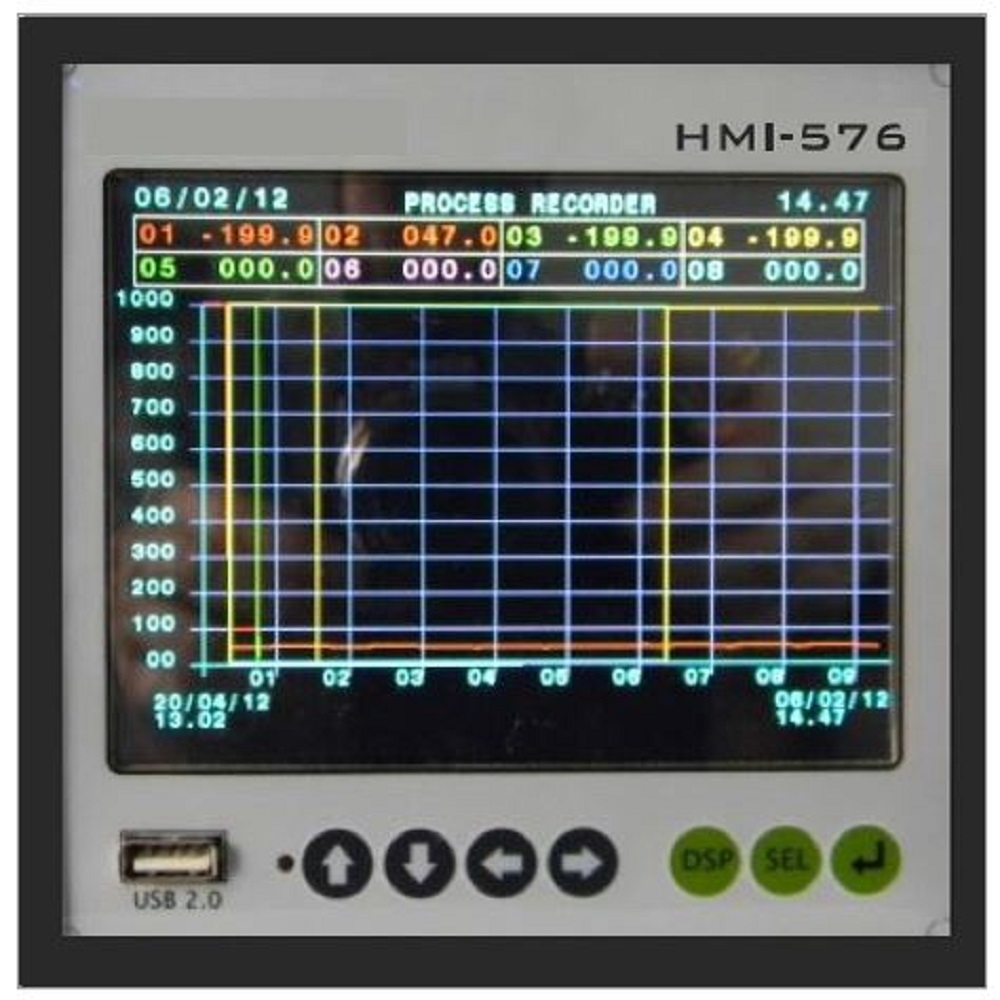

Intuitive Touchscreen and Real-Time Visualization

Equipped with a 5.7-inch colour touchscreen LCD, the recorder provides intuitive access to setup, calibration, and data review. Trends and bar graphs are rendered in real time, simplifying the analysis of complex processes for increased operational efficiency.

Safe, Efficient Data Management and Export Options

Internal memory coupled with easy USB or Ethernet download ensures that critical data is securely stored and easily exported in CSV or Excel-compatible formats. This streamlines reporting and facilitates compliance with standard documentation practices.

Rugged Design with Advanced Alarm Features

The IP65-rated front panel and sturdy metal housing allow dependable deployment in harsh environments. Multiple relay alarms help operators respond promptly to abnormal conditions, enhancing system protection and operational safety.

FAQ's of Paperless Recorder:

Q: How do I retrieve recorded data from the Paperless Recorder?

A: You can download your recorded data directly via USB or Ethernet connection. The recorder stores all information in its internal 64MB memory, and files can be exported in CSV or Excel-compatible formats for convenient reporting and analysis.

Q: What types of input signals can this recorder handle?

A: The device supports up to 8 universal inputs, including thermocouples, RTDs, analog (mA, V), and digital signals. This versatility enables it to monitor a variety of process parameters like temperature, pressure, and flow within the same system.

Q: When is firmware upgrade available and how is it performed?

A: Firmware upgrades are provided periodically for performance improvements or new features. Upgrades are performed easily by uploading the new firmware via USB, ensuring your recorder stays up to date with minimal downtime.

Q: Where can the Paperless Recorder be installed?

A: Designed for panel mounting, the Paperless Recorder is suitable for control rooms, process monitoring panels, and industrial environments. Its IP65 front panel rating ensures protection against dust and water, while the metal housing adds extra durability.

Q: What is the process for calibrating the input channels?

A: Calibration is user-programmable through the intuitive touchscreen interface. Users can adjust input channels and measurement ranges to suit their sensors and applications, maintaining high accuracy throughout operation.

Q: How is alarm notification managed by the recorder?

A: The device features multiple relay outputs for alarm signaling. Users can configure alarm parameters on each channel, enabling prompt alerts for operators when monitored values exceed set limits, thus supporting proactive process management.

Q: What are the benefits of using a paperless recorder instead of traditional chart recorders?

A: Unlike traditional chart recorders, the Paperless Recorder eliminates paper handling, improves efficiency with digital storage, enhances data accessibility, and supports seamless data export. Its robust alarms, flexible inputs, and modern visualization streamline both operation and compliance.
